TR2X

4 different blade

arrangements

4 different fixing types

Installation into circular air

ducts

VENTILATION GRILLES, MADE OF STAINLESS STEEL, WITH ADJUSTABLE BLADES

The high-quality ventilation grille blends perfectly into any room.

Suitable for comfort and industrial areas for walls, sills, circular or rectangular air ducts
Are mostly resistant to aggressive environmental influences and cleaning agents
Retain their good appearance for years, do not require surface protection and do not become statically charged
Single piece available in the nominal sizes 225 × 75 to 825 × 325 mm
Adjustable blades for air direction control
Uniform air distribution, easy to realise thanks to various attachments
Simple mounting options for quick and easy installation

Options

Filter element
Mounting kit for volume flow rate balancing
Linear grille

General information

Application

Ventilation grille Type TR2X as air diffuser (supply and extract air) for comfort zones and industrial zones
Directed supply air flow for mixed flow ventilation
Blades are adjustable to meet different local requirements
For constant and variable volume flows
For supply air to room air temperature differences from –12 to +4 K
For installation in walls, sills, circular or rectangular air ducts

Special characteristics

Individually adjustable blades
Countersunk hole, concealed screw fixing with or without installation subframe, unperforated front border without factory-fitted mounting option
Filter element for extract grille optional

Nominal sizes

Width [mm]

225, 325, 425, 525, 625, 825

Height [mm]

75, 125, 225, 325

Grille for installation into circular ducts (R/RA versions)

Width [mm]

225, 325, 425, 525, 625, 825

Height [mm]

75, 125, 225

Variants

Horizontal, vertical or vertical and horizontal blade arrangements
Linear run section consisting of end and centre sections that are assembled on site
Grille for wall, sill and duct installation or for pipe installation
Concealed screw fixing without installation subframe (do not use in aggressive air)
Countersunk hole in front border
Non-perforated front border, without factory-fitted mounting option

Attachments

Volume flow rate balancing on site

AG: Damper element with opposed action blades
AS: Hit and miss damper made of aluminium (parallel slide damper)
SAS: slanted hit and miss damper made of aluminium

Parts and characteristics

Front border made of flanged profile
Individually adjustable, horizontal and / or vertical blades
Perimeter seal, factory-fitted
Vertical centre mullion for nominal widths over 625 mm

Accessories

Filter element for extract grille

Construction features

Front frame profile 25 x 40 mm with bevelled edge to cover the installation opening
Profiled blade, manually adjustable
Fixed connection between attachment and ventilation grille via screw connection

Suitable air duct diameters

Ø100 - 2000 mm

Note: The possible air duct diameters are reduced depending on the grille height.

Material

Front border made of stainless steel type 1.4404
Blades made of stainless steel type 1.4401
Small parts made of stainless steel type 1.4301
PES filter
Foam seal
Stainless steel mounting kit AG
AS and SAS mounting kits made of aluminium

Surfaces

Front border and blades chemically stained
Front border and blades electropolished
Front border and blades powder-coated in RAL 9010 pure white, GU50
Front border and blades powder-coated according to RAL CLASSIC colour palette, GU70

Maintenance

Low maintenance as construction and materials are not subject to wear and tear
Inspection and cleaning according to VDI 6022

Standards and guidelines

Sound power level of the air-regenerated noise measured according to EN ISO 5135
Filter class ISO Coarse 45% according to ISO 16890

Technische informatie

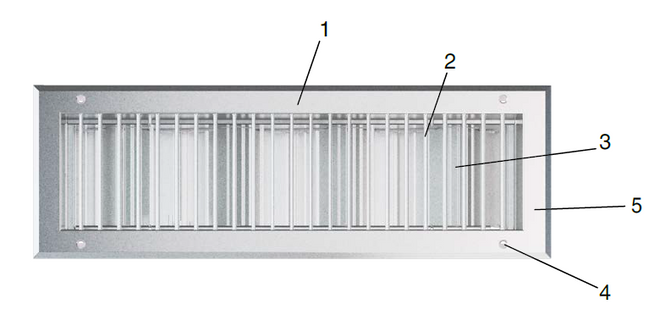

Schematic illustration of ventilation grille TR2X-V-AG

1 Front border

2 Vertical blades

3 Attachment damper element, opposed action blades

4 Countersunk hole

5 Stainless steel surface

Grille installation with ceiling effect (side view)

Grille installation with ceiling effect (top view)

Grille installation without ceiling effect (side view)

Grille installation without ceiling effect (top view)

Ventilation grilles are air terminal devices for the supply air and extract air of ventilation and air conditioning systems. They direct the supply air into the room. Ventilation grilles with adjustable blades allow for adapting the discharge direction to the local conditions. The result is a mixed flow ventilation in comfort zones and industrial zones, with good overall room ventilation. Due to induction, the air velocity of the supply air flow decreases with increasing distance from the ventilation grille. The distance at which the airflow velocity reaches a certain defined value, e.g. 0.35 m/s, is called throw distance. The supply air flow from wall

grilles that are arranged close to the ceiling achieves a greater throw distance than a comparable free jet (without ceiling influence), due to the ceiling effect. Single grilles, groups of grilles and linear run sections all achieve different throw distances. In cooling mode, it is necessary to consider the jet deflection towards the occupied zone, which increases as the supply air to room air temperature difference increases and the discharge velocity decreases. In heating mode, the supply air jet is deflected towards the ceiling. This has no negative effect on the airflow velocity in the occupied zone, but it may affect the overall ventilation of the room.

Nominal sizes	225 × 75 - 825 × 325
Minimum volume flow rate	11 - 270 l/s or 40 - 972 m³/h
Maximum volume flow rate, with LWA max. 40 dB(A) without attachments	53 - 1111 l/s or 189 - 4000 m³/h
Supply air temperature	-12 to +15 K

Volume flow rate indication for single grilles (undivided construction) for supply air.

The individual sizing of the ventilation and acoustic data for the different variants is possible with our free design programme Easy Product Finder.

Geometric free area (blade arrangement VH, HV) A [m2]

H/B	225	325	425	525	625	825
75	0.008	0.012	0.015	0.019	0.023	0.031
125	0.015	0.023	0.031	0.039	0.046	0.062
225	0.031	0.046	0.062	0.077	0.092	0.123
325	–	0.069	0.092	0.115	0.139	0.185

Geometric free area (blade arrangement V) A [m2]

H/B	225	325	425	525	625	825
75	0.008	0.012	0.016	0.02	0.024	0.032
125	0.016	0.024	0.032	0.04	0.048	0.063
225	0.032	0.048	0.063	0.079	0.095	0.127
325	–	0.071	0.095	0.119	0.143	0.19

Geometric free area (blade arrangement H) A [m2]

H/B	225	325	425	525	625	825
75	0.008	0.012	0.016	0.021	0.025	0.033
125	0.016	0.025	0.033	0.041	0.049	0.066
225	0.033	0.049	0.066	0.082	0.098	0.131
325	–	0.074	0.098	0.123	0.148	0.197

Effective air inflow area supply air (blade arrangement VH, HV) A [m2]

H/B	225	325	425	525	625	825
75	0.007	0.011	0.015	0.019	0.022	0.03
125	0.015	0.022	0.03	0.037	0.045	0.06
225	0.03	0.045	0.06	0.075	0.09	0.12
325	–	0.067	0.09	0.112	0.135	0.18

Effective air inflow area supply air (blade arrangement V) A [m2]

H/B	225	325	425	525	625	825
75	0.008	0.012	0.015	0.019	0.023	0.031
125	0.015	0.023	0.031	0.039	0.046	0.062
225	0.031	0.046	0.062	0.077	0.093	0.124
325	–	0.07	0.093	0.116	0.139	0.185

Effective air inflow area supply air (blade arrangement H) A [m2]

H/B	225	325	425	525	625	825
75	0.008	0.012	0.016	0.02	0.024	0.032
125	0.016	0.024	0.032	0.04	0.048	0.064
225	0.032	0.048	0.064	0.08	0.096	0.128
325	–	0.072	0.096	0.12	0.144	0.192

Effective air inflow area return air (blade arrangement V) Aeff [m2]

H/B	225	325	425	525	625	825
75	0.006	0.009	0.011	0.014	0.017	0.023
125	0.011	0.017	0.023	0.028	0.034	0.045
225	0.023	0.034	0.045	0.057	0.068	0.091

H/B	225	325	425	525	625	825
325	–	0.051	0.068	0.085	0.102	0.136

Effective air inflow area extract air (blade arrangement H) A [m2]

H/B	225	325	425	525	625	825
75	0.006	0.009	0.012	0.015	0.018	0.023
125	0.012	0.018	0.023	0.029	0.035	0.047
225	0.023	0.035	0.047	0.059	0.07	0.094
325	–	0.053	0.07	0.088	0.106	0.141

This specification text describes the general properties of the product. Texts for variants can be generated with our Easy Product

Finder design programme.

Specification text

Ventilation grille as supply air or extract air diffuser for the ventilation of rooms in ventilation and air conditioning systems. Consisting of a front border with bevelled edge. Installation preferably in circular or square air ducts, and for wall mounting. Ready-to-install component, consisting of a front border and individually adjustable, vertical and/or horizontal blades. Customised aerodynamic and acoustic design with web configurator.

Material

Front border made of stainless steel type 1.4404
Blades made of stainless steel type 1.4401
Small parts made of stainless steel type 1.4301
PES filter
Foam seal
Stainless steel mounting kit AG
AS and SAS mounting kits made of aluminium

Surfaces

Front border and blades chemically stained
Front border and blades electropolished
Front border and blades powder-coated in RAL 9010 pure white, GU50
Front border and blades powder-coated according to RAL CLASSIC colour palette, GU70

Nominal sizes

Width [mm]

225, 325, 425, 525, 625, 825

Height [mm]

75, 125, 225, 325

Grille for installation into circular ducts (R/RA versions)

Width [mm]

225, 325, 425, 525, 625, 825

Height [mm]

75, 125, 225

Technical data

Design-specific

Standards and guidelines

Sound power level of the air-regenerated noise measured according to EN ISO 5135
Filter class ISO Coarse 45% according to ISO 16890

Variants

Horizontal, vertical or vertical and horizontal blade arrangements
Linear run section consisting of end and centre sections that are assembled on site
Grille for wall, sill and duct installation or for pipe installation
Concealed screw fixing without installation subframe (do not use in aggressive air)
Countersunk hole in front border
Non-perforated front border, without factory-fitted mounting option

Accessories

Filter element for extract grille

Equivalence criteria

Adjustable air pattern
Grille available in various colours
Optional air direction control via factory-set blades
Optional various attachments for restricting and balancing the grilles
Ventilation data and acoustic data verified by laboratory measurements
Dust and scratch protection thanks to individual packaging
Various mounting options for common application areas
Stainless steel materials with refined surface

Manufacturer of the product

Trox SE

Serie

TR2X

–

525 x 125

1 Type
TR2X Stainless steel ventilation grille

2 Variant

No entry: single grille
E End section
M Middle section

3 Construction

No entry: installation into walls, sills or ducts
R Installation into circular ducts (large duct diameters)
RA Installation into circular ducts with small Ø and additional bend (small duct diameters)

4 Front frame

No entry: profile 25 × 40 mm with bevelled edge

5 Blade arrangement

V Vertical front blade
H Horizontal front blade
VH Vertical front blade, horizontal air direction control
HV Horizontal front blade, vertical rear blade

6 Nominal size [mm]
Specify width × heigh

7 Attachment

Suitable for supply air and extract air
No entry: without attachment (front grille only)
AG Damper blade, opposed action blades
AS Hit and miss damper (parallel slide damper)

Only suitable for supply air
SAS Slanted hit and miss damper

8 Filter
Suitable for extract air
No entry required: without filter element
EF with filter element (not with SAS attachment )

9 Fixing
No entry required: countersunk holes in the front frame
SP Concealed screw fixing, for installation without installation subframe
NO No factory-fitted mounting option (unperforated front frame)

10 Air discharge
No entry required: air direction control 0°
44 Air direction control 44°
84 Air direction control 84°
110 Air direction control 110°
140 Air direction control 140
GEG Opposed

11 Surface
P0 Powder-coated, RAL 9010 (pure white), GU 50
P1 Powder-coated, specify RAL CLASSIC colour, gloss level
PS powder-coated, specify NCS colour and gloss level
S8 Electropolished
S9 Chemically pickled

Order example: TR2X-R-V/525x125/AG/EF/NO/S8

Type	TR2X – Stainless steel ventilation grille
Variant	Single grille
Construction	Installation into circular ducts (large duct diameters)
Front frame	Profile 25 x 40 mm with bevelled edge
Blade arrangement	Horizontal front blade
Nominal size [mm]	Width 525, height 125
Attachment	Damper element, opposed action blades
Filter	with filter element
Fixing	No factory-fitted fixing option
Instalation subframe	With installation subframe
Air discharge	Air direction control 0°
Surface	Electropolished

Downloads

Productinformatie

Product Data Sheet TR2X

TR2X_PD_2025_07_01_DE_nl Product Data Sheet 1,9 MB pdf

Handleidingen

Montage-instructie-TR2X

TR2X_IM_CD10093_V3_2025_05_NL_nl Montage-instructie 720 KB pdf

Door op de knop te klikken stelt u ons in staat om u een uitstekende website-ervaring en een eenvoudig winkelproces te bieden. Deze cookies zijn noodzakelijk voor de werking van de website en voor de controle van onze diensten en applicaties, evenals degenen die uitsluitend worden gebruikt voor statistische doeleinden, voor gemaksinstellingen of om gepersonaliseerde inhoud weer te geven. U kunt beslissen welke categorieën u wilt toestaan en u kunt de instellingen voor datagebruik aanpassen op basis van uw individuele vereisten. Houd er rekening mee dat, afhankelijk van de instellingen die u heeft geselecteerd, mogelijk niet alle functionaliteiten van de pagina beschikbaar zijn. U kunt uw selectie op elk moment wijzigen.

TECHNISCH NOODZAKELIJK

Deze cookies zijn nodig voor het goed functioneren van onze website en kunnen niet worden uitgeschakeld. Deze cookies worden in de regel alleen ingesteld als reactie op door u ondernomen acties, zoals het instellen van uw privacyvoorkeuren of het vullen van de winkelwagen. Daarnaast zijn beveiligingsrelevante functionaliteiten of ondersteuning via een speciale webchat geïntegreerd, inclusief alle sessiecookies van TROX die worden ingesteld nadat u zich als klant hebt aangemeld. U kunt uw browser instellen om deze cookies te blokkeren of u hierover te informeren. Als gevolg hiervan werken sommige delen van de website mogelijk niet zoals bedoeld.

STATISTIEKEN EN WEBSITE-ANALYSE

Deze cookies maken het mogelijk om gegevens te verzamelen voor statistieken en analyse zodat TROX de prestaties van de bezochte websites kan meten, technische problemen kan identificeren en aanknopingspunten kan vinden voor optimalisatie. Ze kunnen worden ingesteld door ons of door derden wiens diensten we op onze sites gebruiken. Gebruikers helpen ook bij het identificeren van bijvoorbeeld welke pagina's het vaakst of slechts zelden worden gebruikt of hoe mensen tussen webpagina's navigeren. Alle informatie die door derden wordt gebruikt, wordt geaggregeerd en geanonimiseerd.

TR2X

VENTILATION GRILLES, MADE OF STAINLESS STEEL, WITH ADJUSTABLE BLADES

General information

Technische informatie

Downloads

Productinformatie

Product Data Sheet TR2X

Handleidingen

Montage-instructie-TR2X

TECHNISCH NOODZAKELIJK

STATISTIEKEN EN WEBSITE-ANALYSE

GEMAK EN PERSONALISATIE

VOOR DE BESTE TROX-ERVARING
