TR2

4 verschillende soorten bladopstellingen

4 verschillende bevestingingsmethoden

Geschikt voor installatie in ronde luchtkanalen

VENTILATION GRILLE, MADE OF SHEET STEEL, WITH INDIVIDUALLY ADJUSTABLE BLADES

The high-quality ventilation grille blends perfectly into any room.

Suitable for comfort and industrial areas for walls, sills, circular or rectangular air ducts
Single piece available in the nominal sizes 225 × 75 to 2025 × 525 mm
Adjustable blades for air direction control
Easy volume flow rate balancing thanks to various attachments
Simple mounting options for quick and easy installation
Available in various RAL Classic or NCS colours as well as with a galvanised surface

Options

Ball impact protection
Filter element
Attachment for flow channel
Linear run section

General information

Application

Ventilation grille Type TR2 as air diffuser (supply and extract air) for comfort zones and industrial zones
Directed supply air flow for mixed flow ventilation
Blades are adjustable to meet different local requirements
For constant and variable volume flows
For supply air to room air temperature differences from –12 to +4 K
For installation in walls, sills, circular or rectangular air ducts

Special characteristics

Individually adjustable blades
Countersunk hole, concealed screw fixing with or without installation subframe, unperforated front border without factory-fitted mounting option
Filter element for extract grille optional

Nominal sizes

Width [mm]

225, 325, 425, 525, 625, 825, 1025, 1225, 1425, 1625, 1825,

2025

Height [mm]

75, 125, 225, 325, 425, 525

Grille for installation into circular ducts (R/RA versions)

Width [mm]

225, 325, 425, 525, 625, 825 1025, 1225

Height [mm]

75, 125, 225, 325

Variants

Horizontal, vertical or vertical and horizontal blade arrangements
Ball impact protection especially for installation in sports centres
Linear run section consisting of end and centre sections that are assembled on site
Grille for wall, sill and duct installation or for pipe installation
Concealed screw fixing with and without installation subframe
Countersunk hole in front border
Non-perforated front border, without factory-fitted mounting option

Attachments

Volume flow rate balancing on site
AG: Damper element with opposed action blades
AS: Hit and miss damper (parallel slide damper)
SAS: Slanted hit and miss damper

Parts and characteristics

Front border made of flanged profile
Individually adjustable, horizontal and / or vertical blades
Perimeter seal, factory-fitted
Vertical centre mullion for nominal widths over 625 mm

Accessories

Filter element for extract grille
Installation subframe

Construction features

Front frame profile 25 x 40 mm with bevelled edge to cover the installation opening
Profiled blade, manually adjustable
Fixed connection between attachment and ventilation grille via screw connection

Suitable air duct diameters

Ø125 - 2000 mm

Note: The possible air duct diameters are reduced depending on the grille height.

Material

Front border made of galvanised steel
Galvanised steel blades
PES filter
Foam seal
Ball impact protection made of galvanised steel
AS and SAS made of aluminium
AG made of aluminium and galvanised steel

Surfaces

Front border and blades without coating (galvanised steel)
Front border and blades powder-coated in RAL 9010 pure white, GU50
Front border and blades powder-coated according to RAL
CLASSIC colour palette GU70
Front border and blades powder-coated according to NCS

Maintenance

Low maintenance as construction and materials are not subject to wear and tear
Inspection and cleaning according to VDI 6022
Standards and guidelines
Sound power level of the air-regenerated noise measured according to EN ISO 5135
Filter class ISO Coarse 45% according to ISO 16890

Standards and guidelines

Sound power level of the air-regenerated noise measured according to EN ISO 5135
Filter class ISO Coarse 45% according to ISO (G3) 16890

Technische informatie

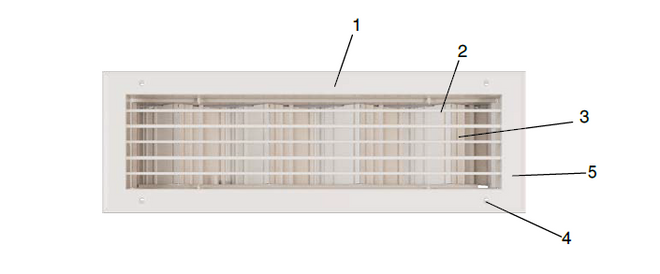

Schematic illustration of ventilation grille TR2-H-AG

1 Front border

2 Blades horizontal

3 Attachment damper element, opposed action blades (galvanised frame, aluminium blades)

4 Countersunk hole

5 Surface powder-coated RAL 9010 (standard for wall, parapet and trunking installation)

Illustration of ventilation grille with blade arrangement HV

Grille installation with ceiling effect (side view)

Grille installation with ceiling effect (top view)

Grille installation without ceiling effect (side view)

Grille installation without ceiling effect (top view)

Ventilation grilles are air terminal devices for the supply air and extract air of ventilation and air conditioning systems. They direct the supply air into the room. Ventilation grilles with adjustable blades allow for adapting the discharge direction to the local conditions. The result is a mixed flow ventilation in comfort zones and industrial zones, with good overall room ventilation. Due to induction, the airflow velocity of the supply air flow decreases with increasing distance from the ventilation grille. The distance at which the airflow velocity reaches a certain defined value, e.g.

0.35 m/s, is called throw distance. The supply air flow from wall grilles that are arranged close the ceiling achieves a greater throw distance than a comparable free jet (without ceiling influence), due to the ceiling effect. Single grilles, groups of grilles and linear run sections all achieve different throw distances. In cooling mode, it is necessary to consider the jet deflection towards the occupied zone, which increases as the supply air to room air temperature difference increases and the discharge velocity decreases. In heating mode, the supply air jet is deflected towards the ceiling. This has no negative effect on the airflow velocity in the occupied zone, but it may affect the overall ventilation of the room.

Nominal sizes	225 × 75 to 2025 × 525 mm
Minimum volume flow rate	11 – 1,111 l/s or 40 – 4,000 m³/h
Maximum volume flow rate, with LWA max. 40 dB(A) without attachments	53 - 3,056 l/s or 189 - 11,000 m³/h
Supply air temperature	-12 to +15 K

Volume flow rate indication for single grilles (undivided construction) for supply air.

The customised sizing of the ventilation and acoustic data for the different variants is possible with our free Easy Product Finder design programme.

Geometric free area (blade arrangement VH, HV) A [m2]

H/B	225	325	425	525	625	825	1025	1225	1425	1625	1825	2025
75	0.008	0.012	0.015	0.019	0.023	0.031	0.039	0.046	0.054	0.062	0.069	0.077
125	0.015	0.023	0.031	0.039	0.046	0.062	0.077	0.092	0.108	0.123	0.139	0.154
225	0.031	0.046	0.062	0.077	0.092	0.123	0.154	0.185	0.216	0.246	0.277	0.308
325	–	0.069	0.092	0.115	0.139	0.185	0.231	0.277	0.323	0.37	0.416	0.462
425	–	–	–	–	–	0.246	0.308	0.37	0.431	0.493	0.554	0.616
525	–	–	–	–	–	–	0.385	0.462	0.539	0.616	0.693	0.77

Geometric free area (blade arrangement V) A [m2]

H/B	225	325	425	525	625	825	1025	1225	1425	1625	1825	2025
75	0.008	0.012	0.016	0.02	0.024	0.032	0.04	0.048	0.056	0.063	0.071	0.079
125	0.016	0.024	0.032	0.04	0.048	0.063	0.079	0.095	0.111	0.127	0.143	0.159
225	0.032	0.048	0.063	0.079	0.095	0.127	0.159	0.19	0.222	0.254	0.285	0.317
325	–	0.071	0.095	0.119	0.143	0.19	0.238	0.285	0.333	0.381	0.428	0.476
425	–	–	–	–	–	0.254	0.317	0.381	0.444	0.508	0.571	0.634
525	–	–	–	–	–	–	0.397	0.476	0.555	0.634	0.714	0.793

Geometric free area (blade arrangement H) A [m2]

H/B	225	325	425	525	625	825	1025	1225	1425	1625	1825	2025
75	0.008	0.012	0.016	0.021	0.025	0.033	0.041	0.049	0.057	0.066	0.074	0.082
125	0.016	0.025	0.033	0.041	0.049	0.066	0.082	0.098	0.115	0.131	0.148	0.164
225	0.033	0.049	0.066	0.082	0.098	0.131	0.164	0.197	0.23	0.262	0.295	0.328
325	–	0.074	0.098	0.123	0.148	0.197	0.246	0.295	0.344	0.394	0.443	0.492
425	–	–	–	–	–	0.262	0.328	0.394	0.459	0.525	0.59	0.656
525	–	–	–	–		–	0.41	0.492	0.574	0.656	0.738	0.82

Effective air inflow area supply air (blade arrangement VH, HV) A [m2]

H/B	225	325	425	525	625	825	1025	1225	1425	1625	1825	2025
75	0.007	0.011	0.015	0.019	0.022	0.03	0.037	0.045	0.052	0.06	0.067	0.075
125	0.015	0.022	0.03	0.037	0.045	0.06	0.075	0.09	0.105	0.12	0.135	0.15
225	0.03	0.045	0.06	0.075	0.09	0.12	0.15	0.18	0.21	0.24	0.27	0.3
325	–	0.067	0.09	0.112	0.135	0.18	0.225	0.27	0.315	0.36	0.405	0.45
425	–	–	–	–	–	0.24	0.3	0.36	0.42	0.48	0.54	0.6
525	–	–	–	–	–	–	0.375	0.45	0.525	0.6	0.675	0.75

Effective air inflow area supply air (blade arrangement V) Aeff [m2]

H/B	225	325	425	525	625	825	1025	1225	1425	1625	1825	2025
75	0.008	0.012	0.015	0.019	0.023	0.031	0.039	0.046	0.054	0.062	0.07	0.077
125	0.015	0.023	0.031	0.039	0.046	0.062	0.077	0.093	0.108	0.124	0.139	0.154
225	0.031	0.046	0.062	0.077	0.093	0.124	0.154	0.185	0.216	0.247	0.278	0.309
325	–	0.07	0.093	0.116	0.139	0.185	0.232	0.278	0.324	0.371	0.417	0.463
425	–	–	–	–	–	0.247	0.309	0.371	0.433	0.494	0.556	0.618
525	–	–	–	–	–	–	0.386	0.463	0.541	0.618	0.695	0.772

Effective air inflow area supply air (blade arrangement H) A [m2]

H/B	225	325	425	525	625	825	1025	1225	1425	1625	1825	2025
75	0.008	0.012	0.016	0.02	0.024	0.032	0.04	0.048	0.056	0.064	0.072	0.08
125	0.016	0.024	0.032	0.04	0.048	0.064	0.08	0.096	0.112	0.128	0.144	0.16
225	0.032	0.048	0.064	0.08	0.096	0.128	0.16	0.192	0.224	0.256	0.288	0.319
325	–	0.072	0.096	0.12	0.144	0.192	0.24	0.288	0.335	0.383	0.431	0.479
425	–	–	–	–	–	0.256	0.319	0.383	0.447	0.511	0.575	0.639
525	–	–	–	–	–	–	0.399	0.479	0.559	0.639	0.719	0.799

Effective air inflow area extract air (blade arrangement V) A [m2]

H/B	225	325	425	525	625	825	1025	1225	1425	1625	1825	2025
75	0.006	0.009	0.011	0.014	0.017	0.023	0.028	0.034	0.04	0.045	0.051	0.057
125	0.011	0.017	0.023	0.028	0.034	0.045	0.057	0.068	0.079	0.091	0.102	0.113
225	0.023	0.034	0.045	0.057	0.068	0.091	0.113	0.136	0.159	0.181	0.204	0.227
325	–	0.051	0.068	0.085	0.102	0.136	0.17	0.204	0.238	0.272	0.306	0.34
425	–	–	–	–	–	0.181	0.227	0.272	0.318	0.363	0.408	0.454
525	–	–	–	–	–	–	0.283	0.34	0.397	0.454	0.51	0.567

Effective air inflow area extract air (blade arrangement H) A [m2]

H/B	225	325	425	525	625	825	1025	1225	1425	1625	1825	2025
75	0.006	0.009	0.012	0.015	0.018	0.023	0.029	0.035	0.041	0.047	0.053	0.059
125	0.012	0.018	0.023	0.029	0.035	0.047	0.059	0.07	0.082	0.094	0.106	0.117
225	0.023	0.035	0.047	0.059	0.07	0.094	0.117	0.141	0.164	0.188	0.211	0.235
325	–	0.053	0.07	0.088	0.106	0.141	0.176	0.211	0.246	0.281	0.317	0.352
425	–	–	–	–	–	0.188	0.235	0.281	0.328	0.375	0.422	0.469
525	–	–	–	–	–	–	0.293	0.352	0.41	0.469	0.528	0.586

This specification text describes the general properties of the product. Texts for variants can be generated with our Easy Product

Finder design programme.

Specification text

Ventilation grille as supply air or extract air diffuser for the ventilation of rooms in ventilation and air conditioning systems. Consisting of a front border with bevelled edge. Installation preferably in circular or square air ducts, and for wall mounting. Ready-to-install component, consisting of a front border and individually adjustable, vertical and/or horizontal blades. Customised aerodynamic and acoustic design with web configurator.

Material

Front border made of galvanised steel
Galvanised steel blades
PES filter
Foam seal
Ball impact protection made of galvanised steel
AS and SAS made of aluminium
AG made of aluminium and galvanised steel

Surfaces

Front border and blades without coating (galvanised steel)
Front border and blades powder-coated in RAL 9010 pure white, GU50
Front border and blades powder-coated according to RAL CLASSIC colour palette GU70
Front border and blades powder-coated according to NCS

Nominal sizes

Width [mm]

225, 325, 425, 525, 625, 825, 1025, 1225, 1425, 1625, 1825,

2025

Height [mm]

75, 125, 225, 325, 425, 525

Grille for installation into circular ducts (R/RA versions)

Width [mm]

225, 325, 425, 525, 625, 825 1025, 1225

Height [mm]

75, 125, 225, 325

Technical data

Design-specific

Standards and guidelines

Sound power level of the air-regenerated noise measured according to EN ISO 5135
Filter class ISO Coarse 45% according to ISO 16890

Variants

Horizontal, vertical or vertical and horizontal blade arrangements
Ball impact protection especially for installation in sports centres
Linear run section consisting of end and centre sections that are assembled on site
Grille for wall, sill and duct installation or for pipe installation
Concealed screw fixing with and without installation subframe
Countersunk hole in front border
Non-perforated front border, without factory-fitted mounting option

Accessories

Filter element for extract grille
Installation subframe

Equivalence criteria

Galvanised sheet steel
Adjustable air pattern
Grille available in various colours
Optional air direction control via factory-set blades
Optional various mounting kits for restricting and balancing the grilles
Various mounting options, customised for standard installation situations
Ventilation data and acoustic data verified by laboratory measurements
Dust and scratch protection thanks to individual packaging

Manufacturer of the product

Trox SE

Type

TR2

–

425 x 225

–

P1 - RAL 9016

1 Type
TR2 Ventilation grille

2 Variant

No entry: single grille
E End section
M Middle section

3 Construction

No entry: installation into walls, sills or ducts
R Installation into circular ducts (large duct diameters)
RA Installation into circular ducts with small Ø and additional bend (small duct diameters)

4 Front frame

No entry: profile 25 × 40 mm with bevelled edge

5 Blade arrangement

V Vertical front blade
H Horizontal front blade
VH Vertical front blade, horizontal air direction control
HV Horizontal front blade, vertical air direction control

6 Ball impact protection grille
No entry required: without ball impact protection
BS With ball impact protection without fixing holes
BL With ball impact protection with fixing holes

7 Nominal size [mm]
Specify width × heigh

8 Attachment

Suitable for supply air and extract air
No entry: without attachment (front grille only)
AG Damper blade, opposed action blades
AS Hit and miss damper (parallel slide damper)

Only suitable for supply air
SAS Slanted hit and miss damper

9 Filter
Suitable for extract air
No entry: without filter element
EF with filter element (not with SAS attachment )

10 Fixing
No entry required: countersunk holes in the front border
SP Concealed screw fixing, for installation without installation subframe
VS Concealed screw fixing, for installation with installation subframe
NO No factory-fitted fixing option

11 Installation subframe
Only with VS fixing
No entry required: without installation subframe
ER With installation subframe

12 Air discharge
Only with V, VH blade arrangement
No entry: diverging 0°
44 Air direction control 44°
84 Air direction control 84°
110 Air direction control 110°
140 Air direction control140
GEG Opposed

13 Surface
No entry: Galvanised steel
P0 Powder-coated, RAL 9010 (pure white), GU 50
P1 Powder-coated, specify RAL CLASSIC colour, gloss level
PS powder-coated, specify NCS colour and gloss level

Order example: TR2-V/425×225/AS/VS-ER/P1-RAL9016

Type	TR2 – Ventilation grille
Variant	Single grille
Construction	Installation into circular ducts (large duct diameters)
Front frame	Profile 25 x 40 mm with bevelled edge
Blade arrangement	Vertical front blade
Ball impact resistance	Without ball impact protection
Nominal size [mm]	Width 425, height 225
Attachment	Hit and miss damper (parallel slide damper)
Filter	with filter element
Fixing	Concealed screw fixing, for installation with installation subframe
Instalation subframe	With installation subframe
Air discharge	Air direction control 0°
Surface	Powder-coated, RAL 9016 (traffic white), GU 70

Downloads

Productinformatie

Product Data Sheet TR2

TR2_PD_2024_10_28_DE_nl Product Data Sheet 1,8 MB pdf

Certificaten

Declaration of hygiene conformity TR2

TR2_HC_2024_08_CH_en Declaration of hygiene conformity 880 KB pdf
Manufacturer's statement TR2

TR2_CE_MS_2024_08_CH_en Manufacturer's statement 750 KB pdf

Handleidingen

Installation manual TR2

TR2_IM_CD10075_V3_2025_05_GB_en Installation manual 1,8 MB pdf

Door op de knop te klikken stelt u ons in staat om u een uitstekende website-ervaring en een eenvoudig winkelproces te bieden. Deze cookies zijn noodzakelijk voor de werking van de website en voor de controle van onze diensten en applicaties, evenals degenen die uitsluitend worden gebruikt voor statistische doeleinden, voor gemaksinstellingen of om gepersonaliseerde inhoud weer te geven. U kunt beslissen welke categorieën u wilt toestaan en u kunt de instellingen voor datagebruik aanpassen op basis van uw individuele vereisten. Houd er rekening mee dat, afhankelijk van de instellingen die u heeft geselecteerd, mogelijk niet alle functionaliteiten van de pagina beschikbaar zijn. U kunt uw selectie op elk moment wijzigen.

TECHNISCH NOODZAKELIJK

Deze cookies zijn nodig voor het goed functioneren van onze website en kunnen niet worden uitgeschakeld. Deze cookies worden in de regel alleen ingesteld als reactie op door u ondernomen acties, zoals het instellen van uw privacyvoorkeuren of het vullen van de winkelwagen. Daarnaast zijn beveiligingsrelevante functionaliteiten of ondersteuning via een speciale webchat geïntegreerd, inclusief alle sessiecookies van TROX die worden ingesteld nadat u zich als klant hebt aangemeld. U kunt uw browser instellen om deze cookies te blokkeren of u hierover te informeren. Als gevolg hiervan werken sommige delen van de website mogelijk niet zoals bedoeld.

STATISTIEKEN EN WEBSITE-ANALYSE

Deze cookies maken het mogelijk om gegevens te verzamelen voor statistieken en analyse zodat TROX de prestaties van de bezochte websites kan meten, technische problemen kan identificeren en aanknopingspunten kan vinden voor optimalisatie. Ze kunnen worden ingesteld door ons of door derden wiens diensten we op onze sites gebruiken. Gebruikers helpen ook bij het identificeren van bijvoorbeeld welke pagina's het vaakst of slechts zelden worden gebruikt of hoe mensen tussen webpagina's navigeren. Alle informatie die door derden wordt gebruikt, wordt geaggregeerd en geanonimiseerd.

TR2

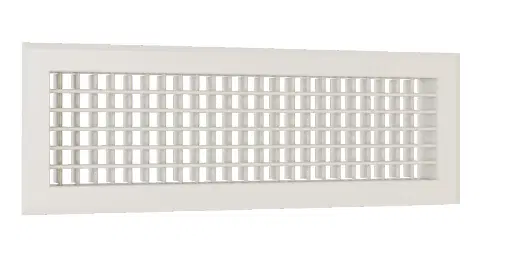

VENTILATION GRILLE, MADE OF SHEET STEEL, WITH INDIVIDUALLY ADJUSTABLE BLADES

General information

Technische informatie

Downloads

Productinformatie

Product Data Sheet TR2

Certificaten

Declaration of hygiene conformity TR2

Manufacturer's statement TR2

Handleidingen

Installation manual TR2

TECHNISCH NOODZAKELIJK

STATISTIEKEN EN WEBSITE-ANALYSE

GEMAK EN PERSONALISATIE

VOOR DE BESTE TROX-ERVARING
