00144717_0
TP043EC
00134654_0
TNC-EC-AZM display module
00137776_0
LED/buzzer combination
00144717_0
00134654_0
00137776_0

TP043EC

System for controlling and monitoring motorised fire dampers

Stand-alone solution for controlling and monitoring up to 12 motorised fire dampers or up to 24 damper blade end positions

  • Easy electrical installation using coded plug connections
  • Pre-installed application software
  • No additional programming required
  • Improves the fire safety

Application

Application

  • 4.3" MMI system for display and operation, also as communication master for up to three TNC-EASYCONTROL units
  • ModBus TCP and BACnet/IP interfaces for integration with central BMS
  • With integral TNC Basic User Software/EC

Technical information

  • Function
  • Specification text
  • Order code
TP43AT 00144504_0

Standard description (characteristics)

MMI system for display and operation, also as communication master for up to three TNC-EASYCONTROL units

  • 4.3 " colour display, touch screen
  • Interfaces: ModBus RTU/TCP and BACnet/IP interfaces for integration with the central BMS
  • With Basic User Software/EC for controlling and for the display of all system status values
  • Automatic functional test, including documentation
  • Real time clock
  • Ethernet, USB

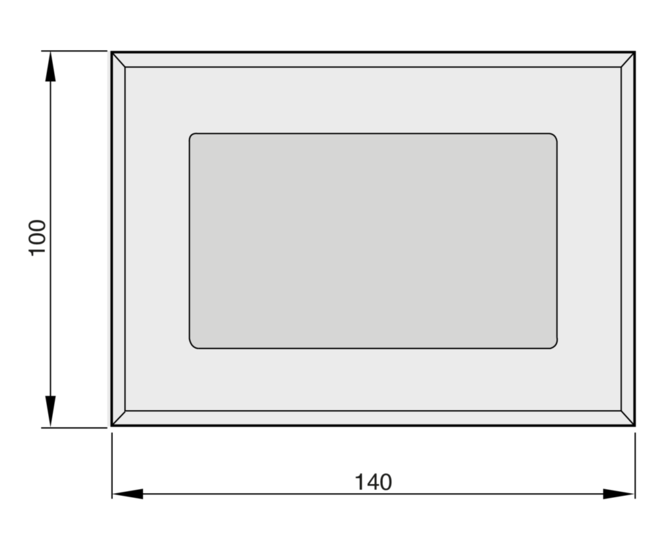

  • Dimensions of front panel (B × H × T): 140 × 100 × 5 mm
  • Protection level: Front IP 65; back IP 20
  • Supply voltage 24 V DC
  • Make: TROX GmbH or equivalent
  • Type: TP043EC

00144001_0


 Type
TP043EC



TNC Easycontrol Commissioning
